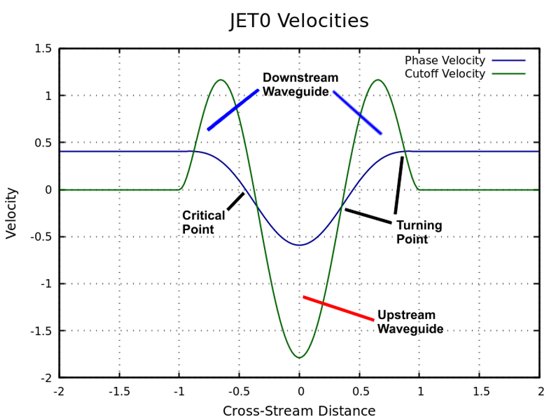

Fig. 15e. Phase speed and Rossby cutoff phase speed for waves propagating on a barotropically unstable westerly jet. They are trapped in the axial, upstream propagating waveguide, but their evanescent tails extend accoss the outer, downstream propagating waveguides and over-reflect from the turning points at the jets' outer margins.
