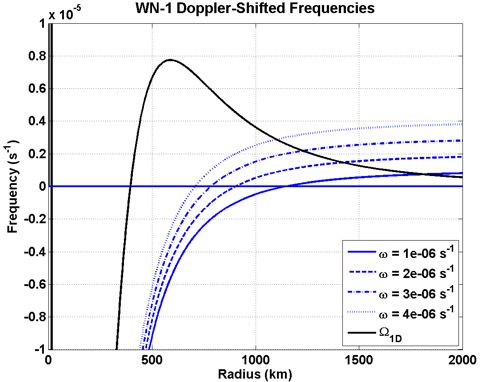

Fig. 8a. Doppler shifted freqencies (Ω in blue) for selected rotation frequencies (ω) with repect to the ground in the Wood-White asymptotically bounded vortex. These waves propagate downstream in the outer waveguide, which corresponds to the frequency passband 0 < Ω < Ω_1D.
