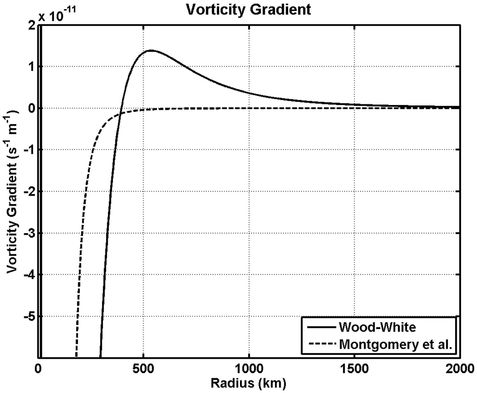

Fig. 8b. Radial vorticity-gradient profiles for the Wood-White (2010) and Montgomery et al. (1997) vortices, illustrating the negative gradient in the inner waveguide around the core and the positive gradient in the annular outer waveguide of the former and the existance of only a single "beta-skirt" waveguide of the latter.
